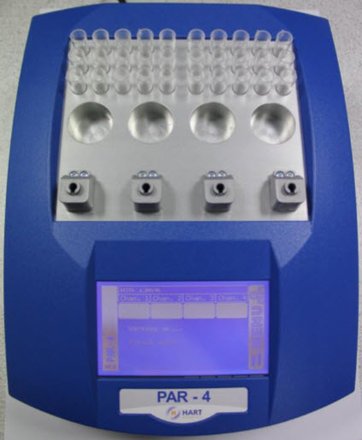

PAR-4 Platelet Aggregometer
Assay Platelet Aggregation Product No. HB-5543-FG
PAR-4 Platelet Aggregometer
Product Description



The new generation of the 4-channel platelet aggregometer according to Born. Compact stand-alone version or in combination with the APACT LPC-Software for every routine- and research laboratory.




Measuring Principle
  • Photometric at 740nm
  • 4 sensitive LED Photometer
  Measuring Unit
  • 4-measuring channels
  • 4 reagent positions (1x stirred)
  • 2x15 cuvette positions
  Tests
  • ADP
  • Ristocetin
  • Collagen
  • Arachidonic Acid
  • HIT (Heparin Induced Thrombocytopenia
  • v. Willebrand Ristocetin Co-Factor (Option)
  Test Volume
  • Mikro cuvette for single use
  • Micro volume (200µl PRP + 20µl Inductor)
  Software
  • 15 freely editable test positions
  • Max. measuring time up to 3.600 sec.
  • Automated calculation of max. % Aggregation, min. % Aggregation, area, Shape Change, Lag-Phase, Des-Aggregation and more
  • Real time reaction curve recording
  • Software handling via touch sensitive display
  • Multi-language software
  • Inductor settings can be loaded / stored via ChipCARD®
  • Data transmission to MMC-Card or external PC
  Hardware
  • External LAN (network) printer connectable
  • ChipCARD® reading unit
  • MMC-Card reader
  Technical Data
  • 115/230V, 50/60 Hz
  • Weight: 5.3Kg
  • Dimensions: 25.0 x 32.5 x 14.0 cm (WxDxH)
